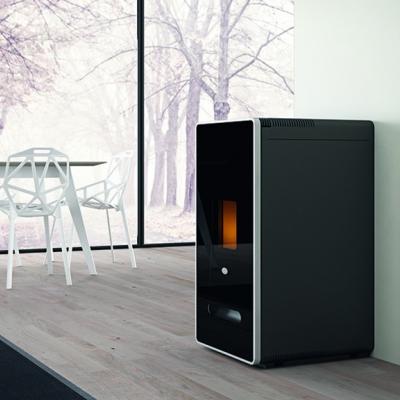

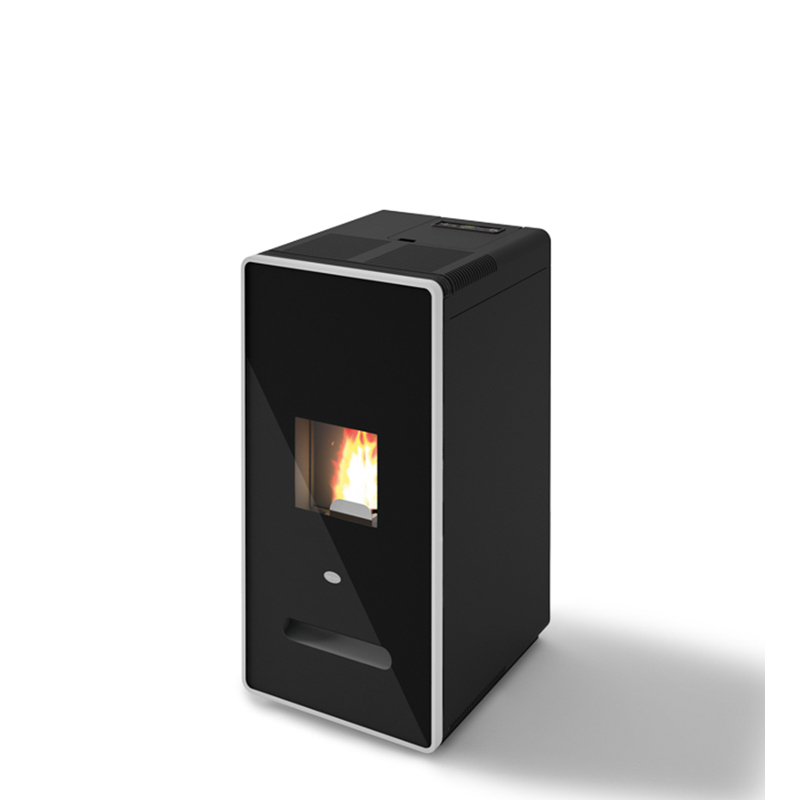

Zelda 9 kW

Double glazed door
Front glass door with black or grey etching
Forced ventilation
Air Diffusion System Door (ADSD)
5 operating power levels
Menu display in 6 languages
Removable ash tray for ash removal
Removable handle

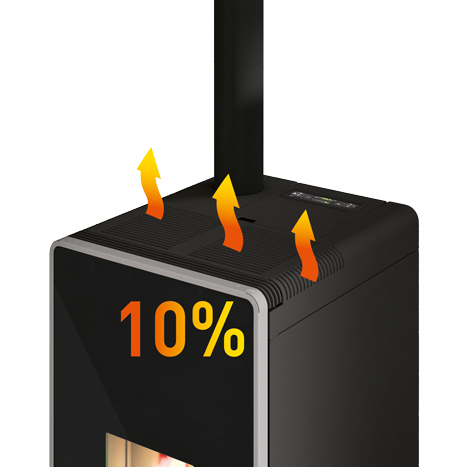

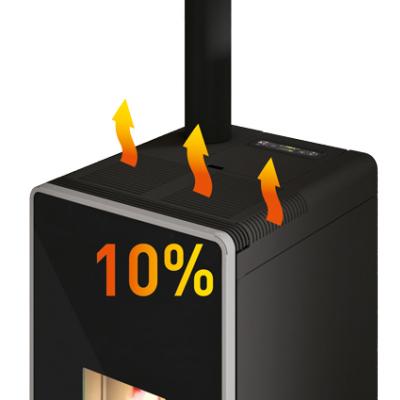

Upper - rear smoke extraction
Safety thermostat
Suitable for external thermostat
Safety Manostat
Timer Thermostat


CERTIFICATION

Certified and tested product.

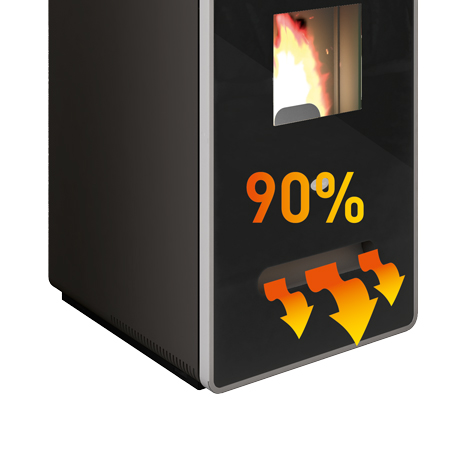

ADSD

This system can reduce the time required for the stove to achieve the desired ambient temperature. In stoves with the Air Diffusion System Door installed, an air current flows over the door and front window, absorbing heat and warming the surroundings after exiting through the bottom of the door and the upper slots.

Download Techical sheet
Instruction Manual
DoP
ErP - Label Zelda
ErP - Product Information Sheet Zelda

Total heat output: max 8,8 kW – min 2,8 kW
Nominal heat output: max 7,5 kW – min 2,5 kW

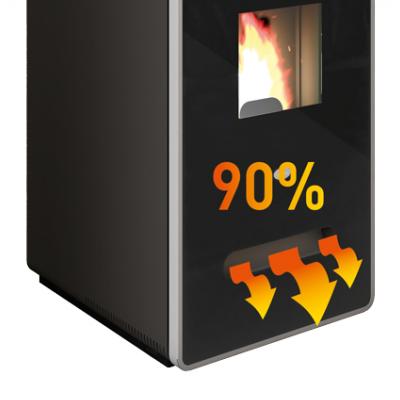

Efficiency: Pmax 85,5% – Pmin 90%
CO emission at 13% O2: Pmax 0,016% - Pmin 0,013%
Pellet consumption: max 1,8 kg/h - min 0,6 kg/h
Reservoir capacity: 13,5 kg
Heatable room volume: 140 – 200 mc
Minimum distances from flammable walls: side: 25 cm - back: 10 cm - front side: 100 cm
Voltage / Frequency: 230 V / 50 Hz
Rated input power: 320 W
Dimension: L 45,8 x P 53,8 x H 92,4 cm
Weight: 84,6 kg
Steel combustion chamber
Stainless steel brazier
Complies with: EN14785 - BImSchV II - 15a B-VG - LRV/VKF
Sliding drawer for ash removal
Fume outlet: Top - Rear
Remote control: Optional
WIFI module for remote control: Optional
Platforms for protection: Optional
