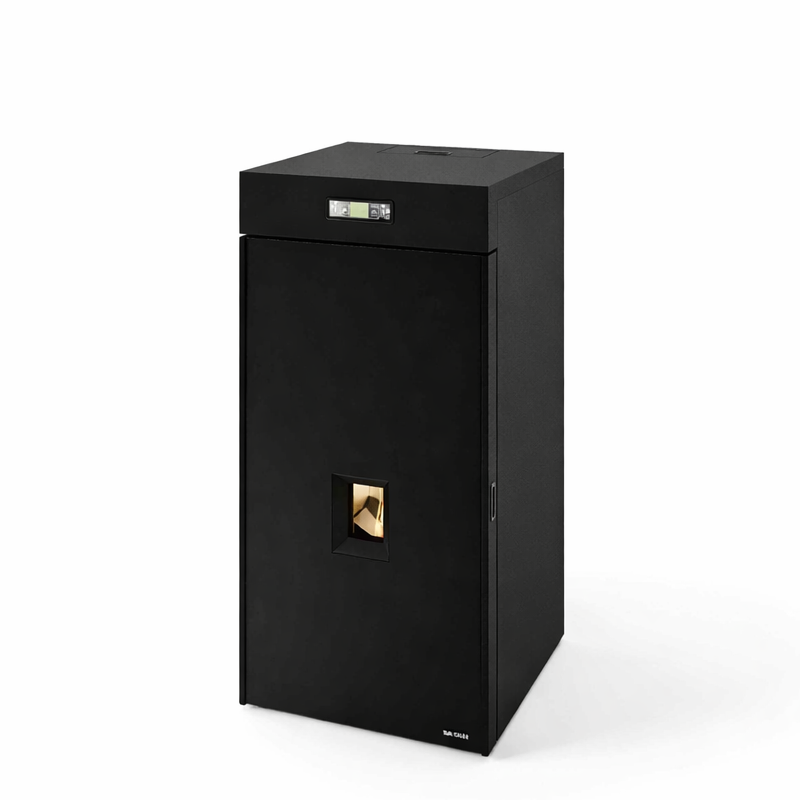

Pro 24

BOILER CLASS 5

Boiler class 5
Double door
43 kg Pellet tank
5 operating power levels
Menu display in 6 languages
Self-cleaning
Unburnt pellet recirculation system
Automatic turbulator cleaning
Continuous auger motor for maximal silence
Removable ash drawer for the collection of the ashes in a separate compartment
High efficiency insulation
Low maintenance
Safety thermostat
Suitable for external thermostat
Twin Safety Manostat
Water Pressure Transducer
Timer Thermostat
Circulation pump
Expansion tank
Safety valve
Three-way valve (EV 24 ACS)

Total heat output: max 24,5 kW – min 5,2 kW
Water heat output: max 22,5 kW – min 4,6 kW
Energy Efficiency Class: A+
Efficiency: Pmax 92,0% – Pmin 88,9% (to water)
CO emission at 13% O2: Pmax 0,001% – Pmin 0,009%
Pellet consumption: max 5,1 kg/h – min 1,1 kg/h
Reservoir capacity: 43 kg

Heatable room volume: 500 – 600 mc
Boiler water content: 30 l
Minimum distances from flammable walls: side: 25 cm - back: 25 cm - front side: 100 cm
Voltage / Frequency: 230 V / 50 Hz
Rated input power: 400 W

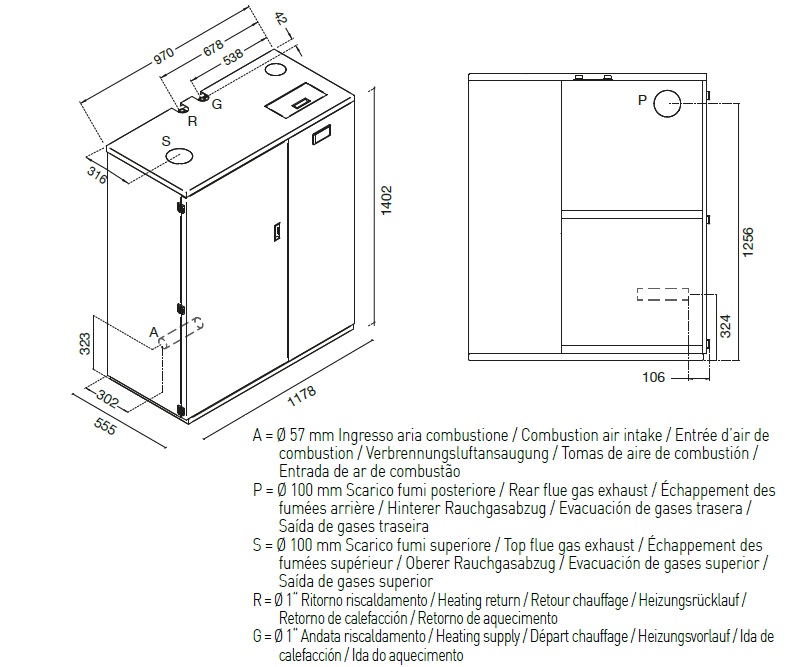

Dimension: L 60,2 x P 62,3 x H 124,2 cm
Weight: 230 kg
Steel combustion chamber
Stainless steel brazier
Complies with: EN 303-5:2012 - BImSchV II - 15a B-VG - LRV/VKF - BAFA
Remote control: Optional
WIFI module for remote control: Optional
Removable ash drawer for the collection of the ashes in a separate compartment
Fume outlet: Rear
Self-cleaning turbulators
Hot water on request
Platforms for protection: Optional
Boiler: Optional





Pro 24

CERTIFICATION

Certified and tested product.

ECODESIGN 2022

This product is in conformity with ECO DESIGN 2022 that sets the criteria defining sustainable engineering, computations and measurements aimed at reducing emissions in the atmosphere.

ENVIRONMENTAL CLASSIFICATION

This product complies with the most restrictive rules on environmnental standards and it has been awarded with 5 stars.

WI-FI MODULE (OPTIONAL)

Module for remote control, it can be installed during post-sales.
