Front glass door with black etching
Forced ventilation

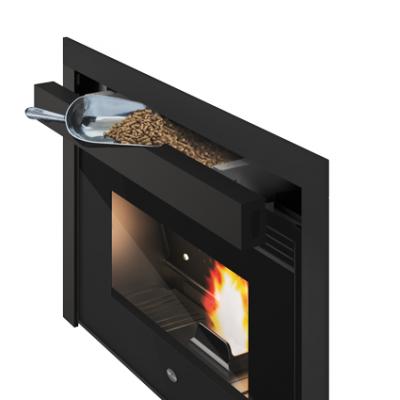

Removable front drawer for pellet loading
18 kg Pellet tank
5 operating power levels
Menu display in 6 languages
Cast iron brazier
Removable handle
Channelling with two independent fans on two outputs
Double independent canalization with the possibility to be controlled by thermostats
Radio control supplied
Safety thermostat
Suitable for external thermostat
Safety Manostat
Timer Thermostat
Total heat output: max 12,4 kW - min 5,3 kW
Nominal heat output: max 11,5 kW - min 5,0 kW
Energy efficiency class: A+
Efficiency: Pmax 92,5% – Pmin 94,5%
CO emission at 13% O2: Pmax 0,016% – Pmin 0,022%
Pellet consumption: max 2,8 kg/h – min 1,2 kg/h
Reservoir capacity: 18 kg
Heatable room volume: 200 – 300 mc
Minimum distances from flammable walls: side: 10 cm - bearing surface: 5 cm - back: 10 cm - front side: 100 cm
Voltage / Frequency: 230 V / 50 Hz
Rated input power: 400 W
Dimension: L 96,1 x P 56,6 x H 63,7 cm
Minimum insert fixing hole size: L 88,5 x H 59,0 cm
Weight: 160 kg
Steel combustion chamber
Cast iron brazier
Complies with: EN14785 - BImSchV II - LRV/VKF
Radio control supplied
Channelling with two independent fans on two outputs
WIFI module for remote control: Optional
Support: Optional
Lower frame: Optional
The 3 fans equipped heat homogenously 3 separate environments at once.
To guarantee the best comfort, 2 thermostats can be installed to control the functioning of the canalizations.
Front glass door with black etching
Forced ventilation
Removable front drawer for pellet loading
18 kg Pellet tank
5 operating power levels
Menu display in 6 languages
Cast iron brazier
Removable handle
Channelling with two independent fans on two outputs
Double independent canalization with the possibility to be controlled by thermostats
Radio control supplied
Safety thermostat
Suitable for external thermostat
Safety Manostat
Timer Thermostat
Certified and tested product.
This product is in conformity with ECO DESIGN 2022 that sets the criteria defining sustainable engineering, computations and measurements aimed at reducing emissions in the atmosphere.
This product complies with the most restrictive rules on environmnental standards and it has been awarded with 5 stars.
The SHU symbol indicates that the stove is equipped with a removable handle. This is a security feature to avoid accidental and/or involuntary opening of the fire door.
Module for remote control, it can be installed during post-sales.
