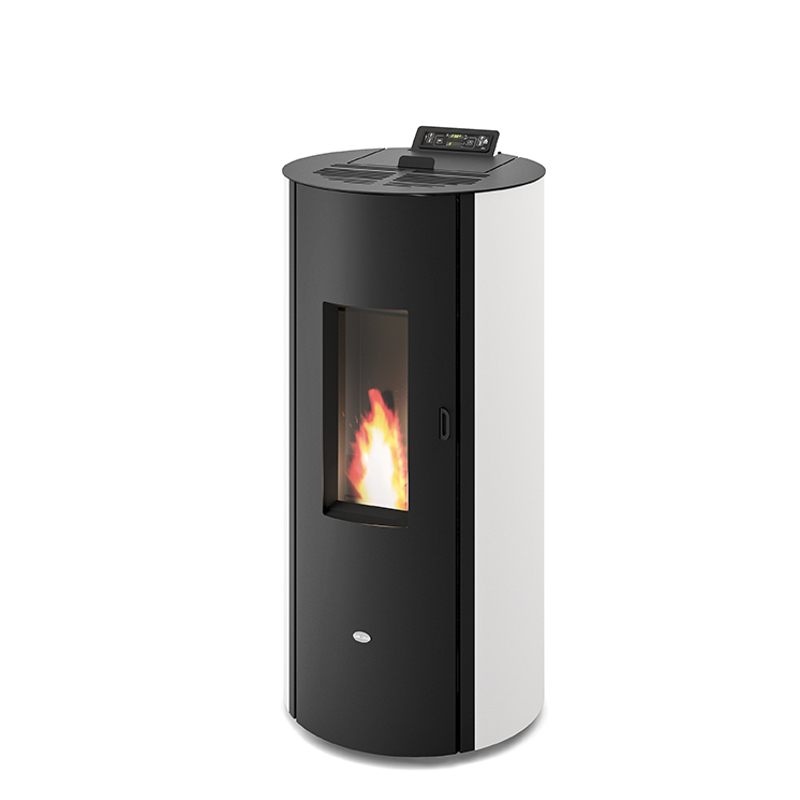

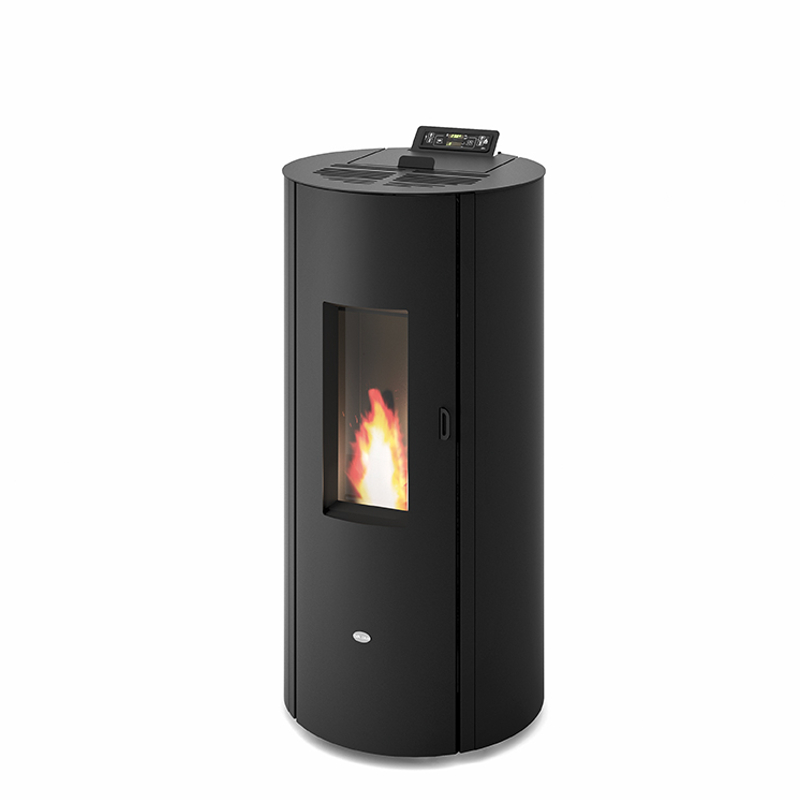

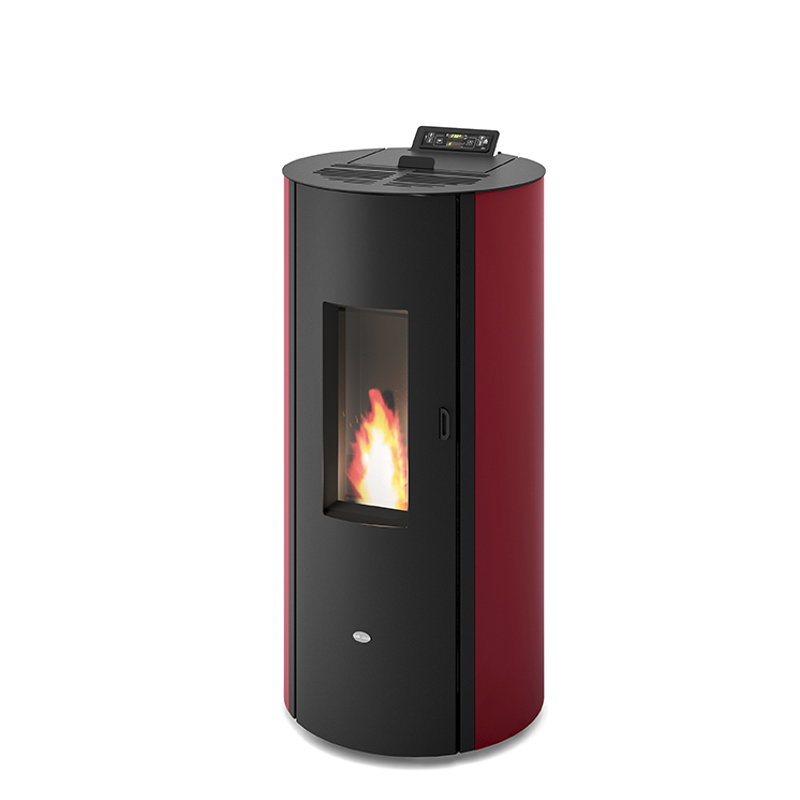

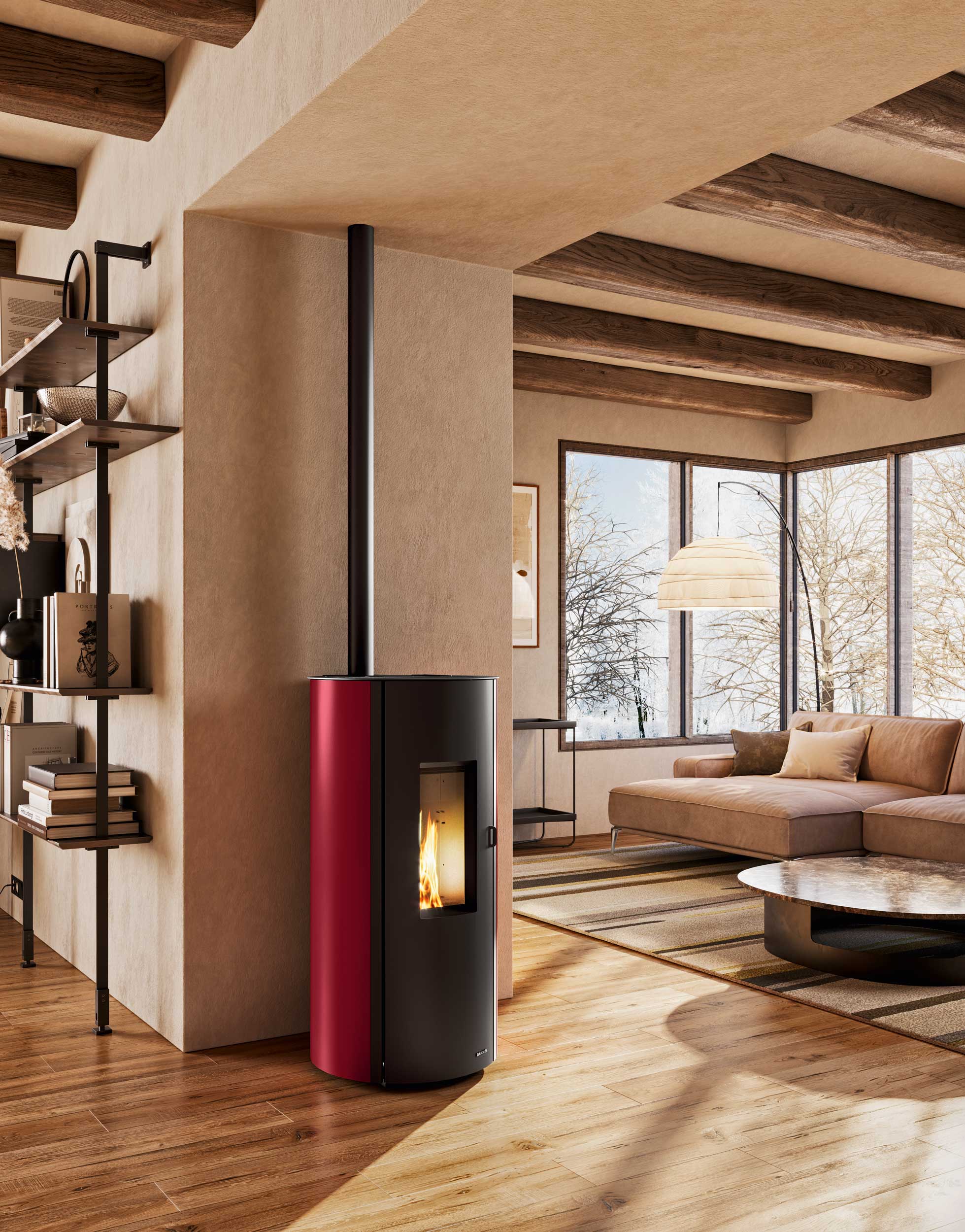

Manola

SEALED

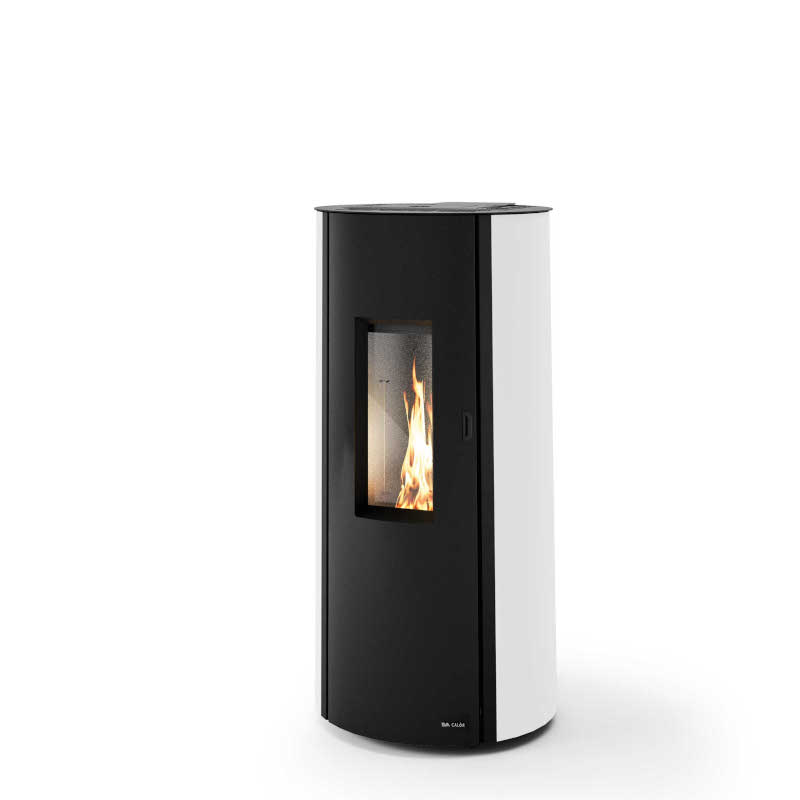

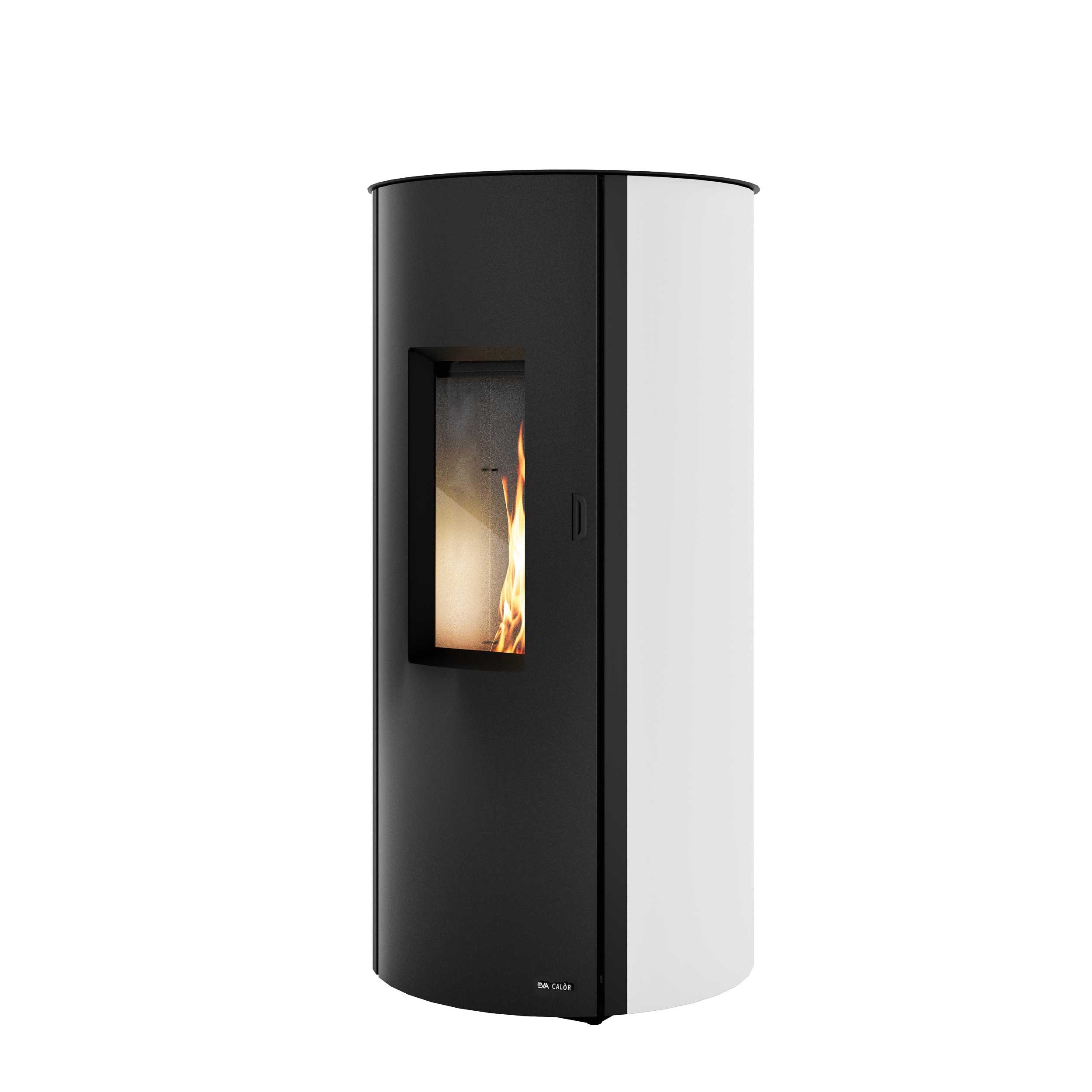

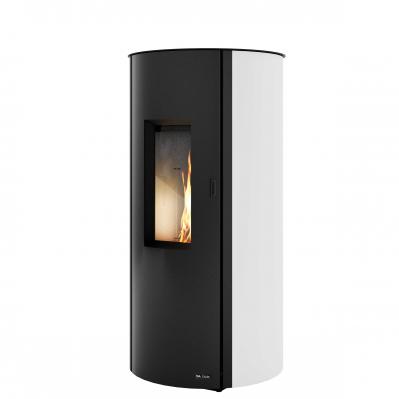

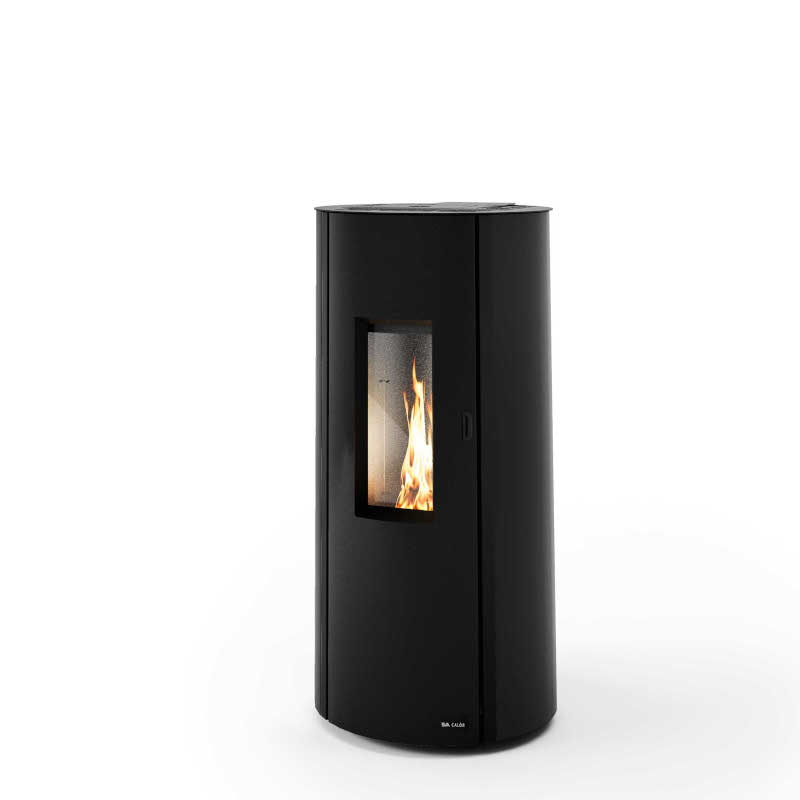

Steel coating with cylindrical shape

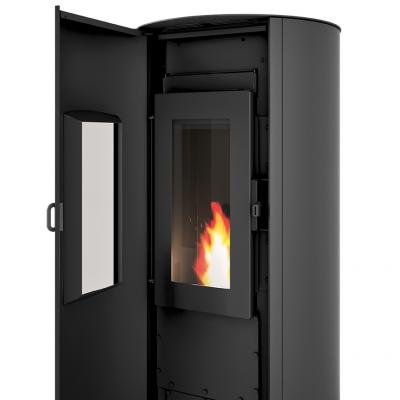

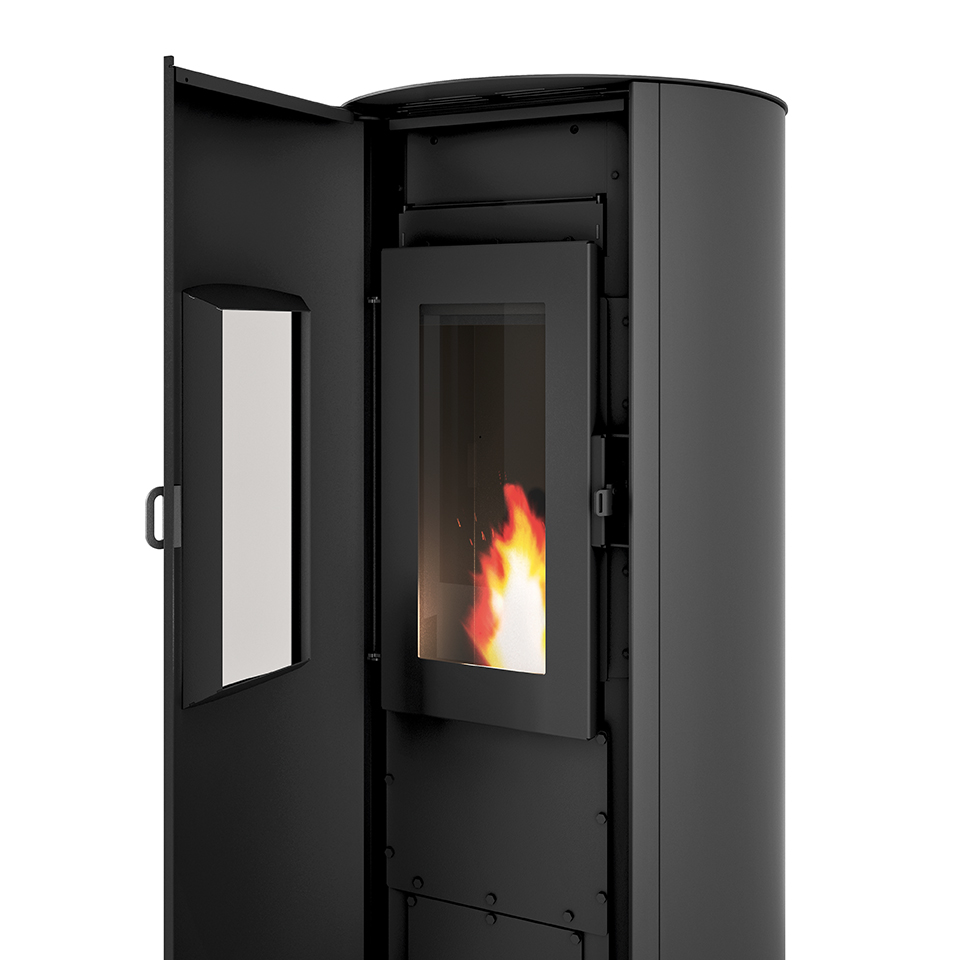

Double door
Forced ventilation
19 kg Pellet tank
5 operating power levels
Menu display in 6 languages
Cast iron brazier
Sealed stove
Removable handle
Safety thermostat
Suitable for external thermostat
Safety Manostat
Timer Thermostat

Total heat output: max 9,1 kW – min 3,1 kW
Nominal heat output: max 8,0 kW – min 3,0 kW
Energy efficiency class: A+
Efficiency: Pmax 92,0% – Pmin 95,5%
CO emission at 13% O2: Pmax 0,008% – Pmin 0,008%
Pellet consumption: max 1,9 kg/h – min 0,6 kg/h
Reservoir capacity: 19 kg
Heatable room volume: 140 – 200 mc
Minimum distances from flammable walls: side: 30 cm - back: 30 cm - front side: 100 cm
Voltage / Frequency: 230 V / 50 Hz
Rated input power: 350 W

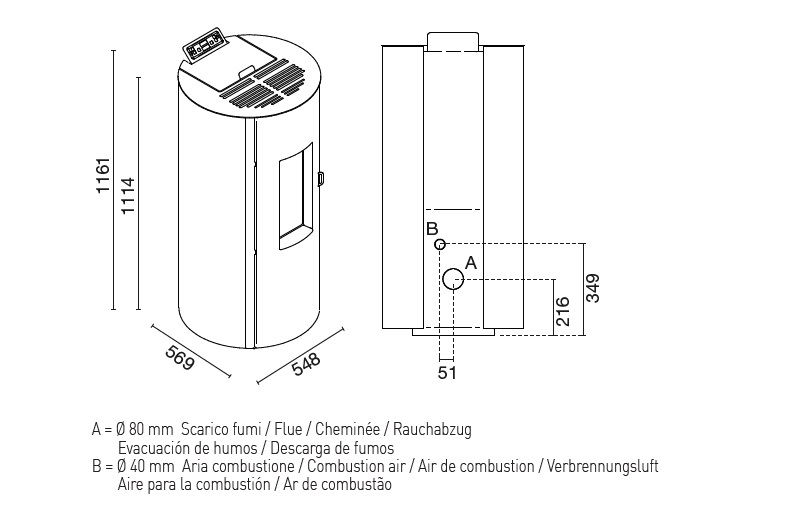

Dimension: L 54,8 x P 56,9 x H 116,1 cm
Weight: 110 kg
Steel combustion chamber
Cast iron brazier
Complies with: EN14785 - BImSchV II - LRV/VKF
Sealed stove

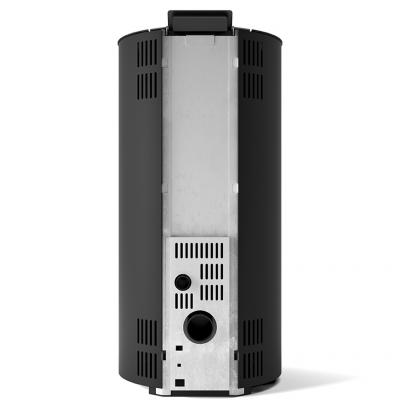

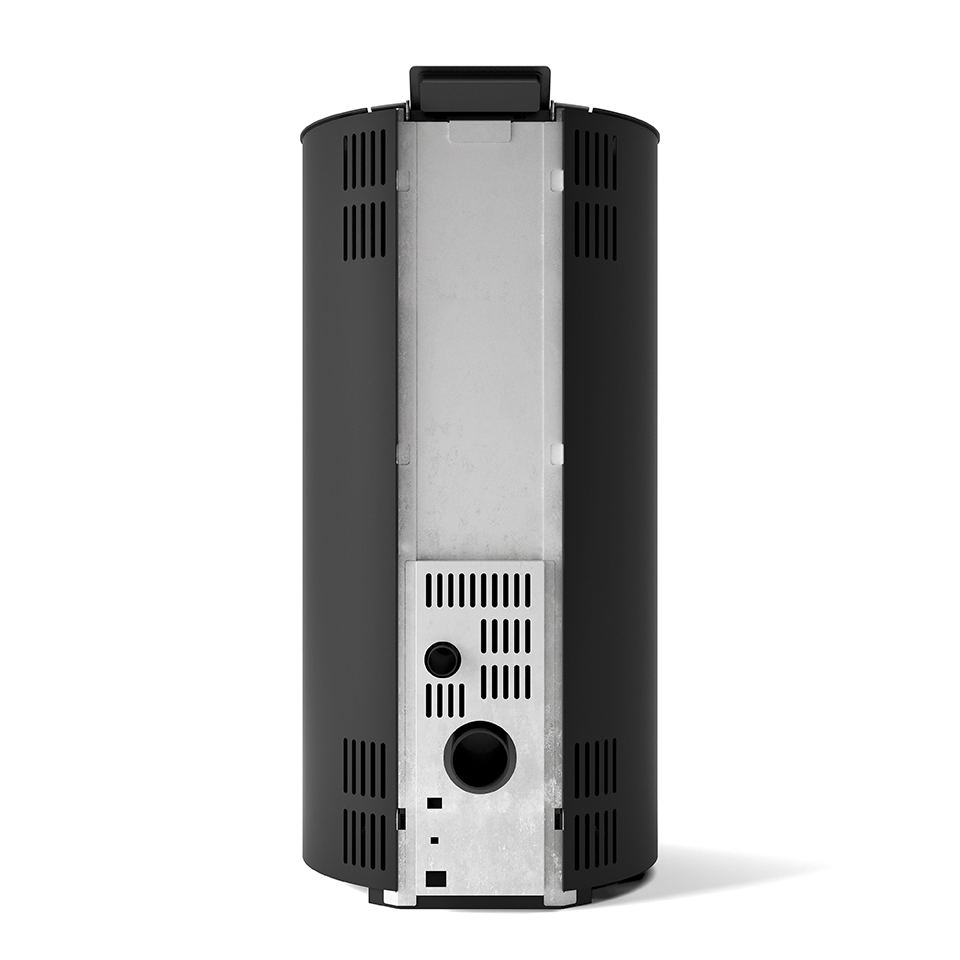

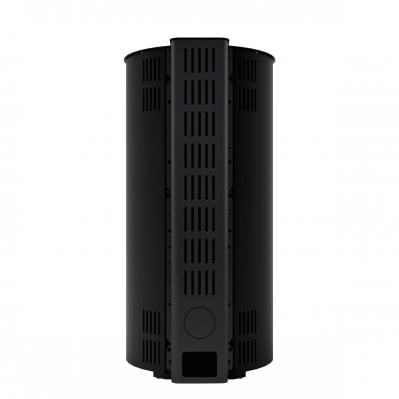

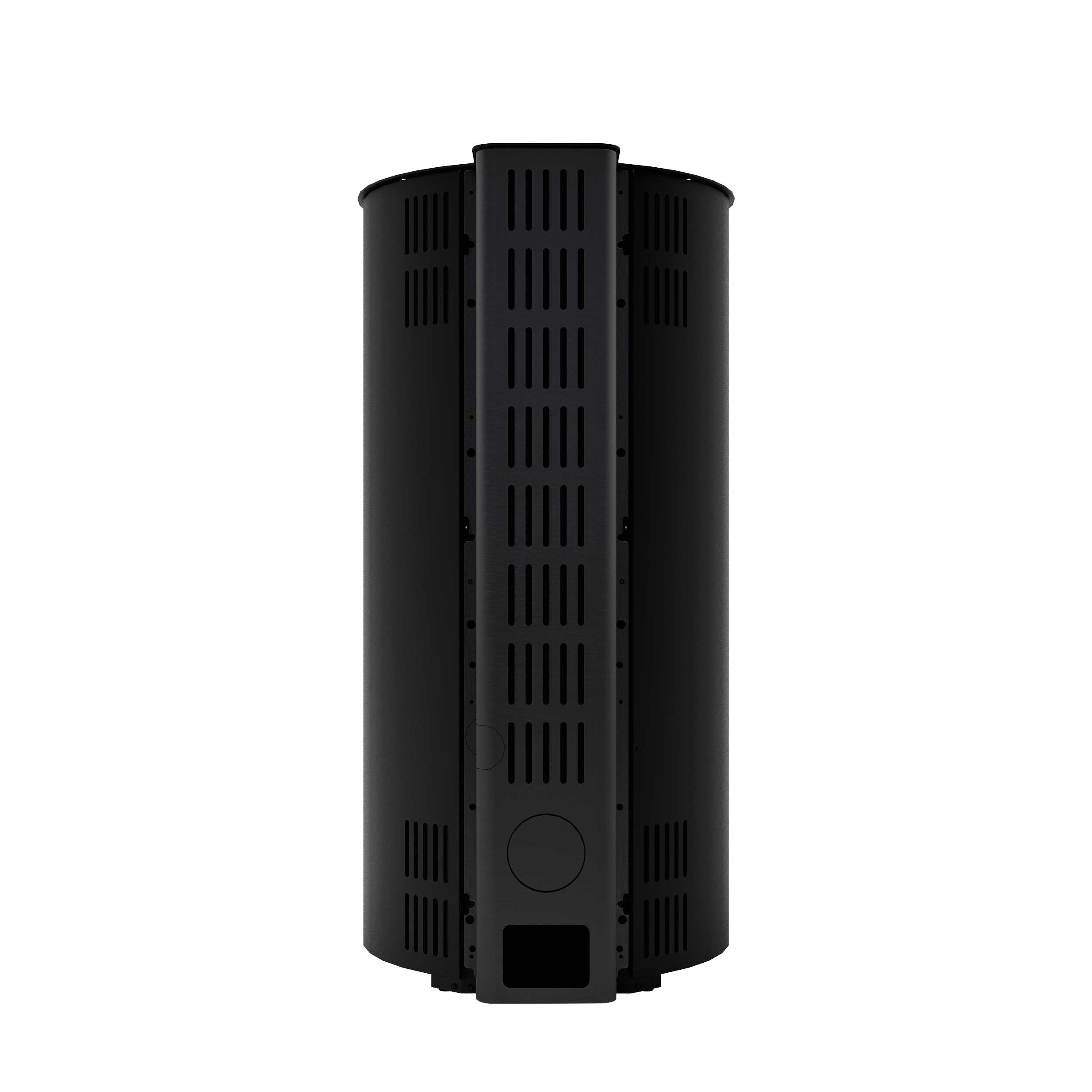

Fume outlet: Rear
Remote control: Optional
WIFI module for remote control: Optional
Platforms for protection: Optional







Manola

CERTIFICATION

Certified and tested product.

ECODESIGN 2022

This product is in conformity with ECO DESIGN 2022 that sets the
criteria defining sustainable engineering, computations and measurements
aimed at reducing emissions in the atmosphere.

ENVIRONMENTAL CLASSIFICATION

This product complies with the most restrictive rules on environmnental standards and it has been awarded with 5 stars.

SHS

The SHS symbol is used on stoves with a hermetic combustion system. With this system the stove draws no air for combustion from the space in which it is installed. Not only does this greatly improve performance and optimise heat generation, it also makes the stove very safe and suitable for installation in locations such as bedrooms, studio flats and bathrooms.

SHU

The SHU symbol indicates that the stove is equipped with a removable handle. This is a security feature to avoid accidental and/or involuntary opening of the fire door.

WI-FI MODULE (OPTIONAL)

Module for remote control, it can be installed during post-sales.
