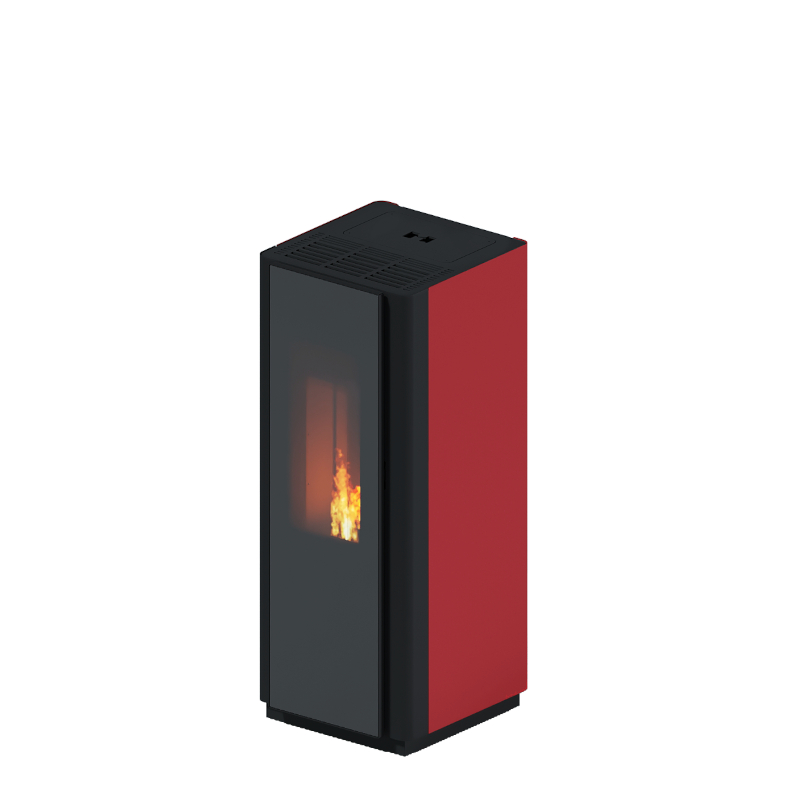

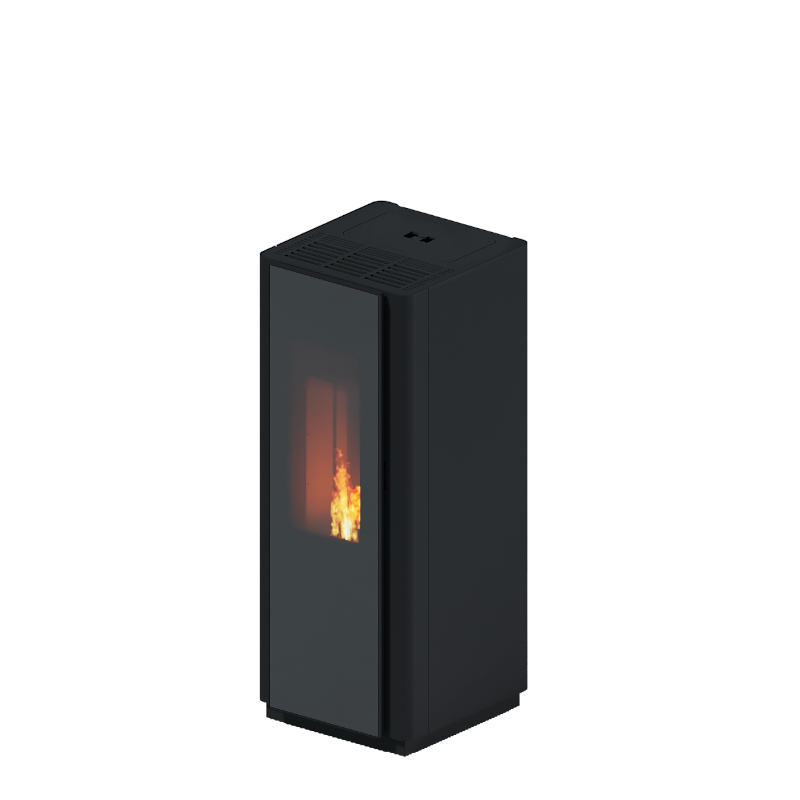

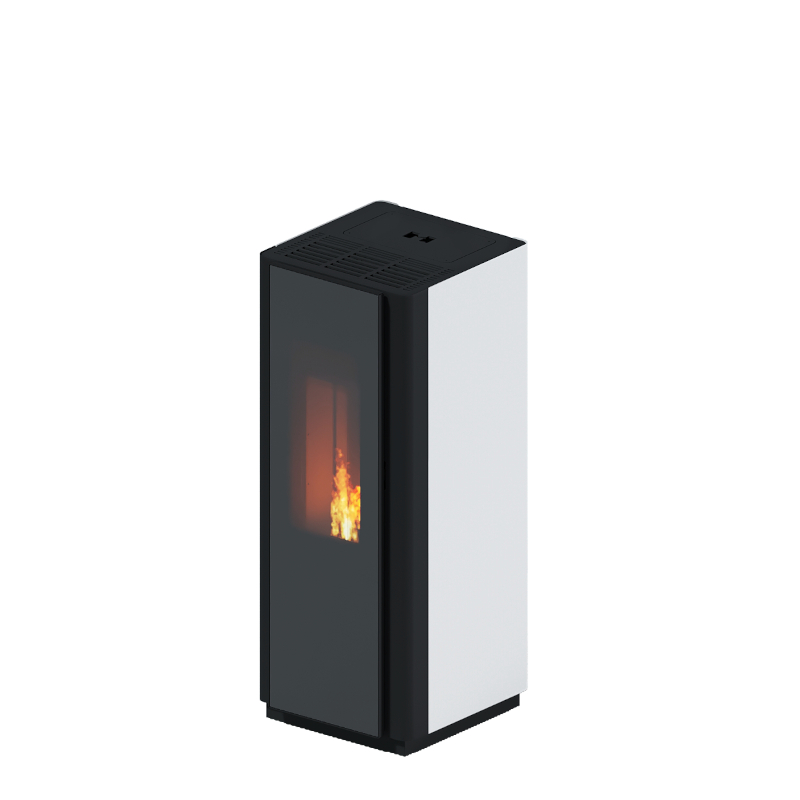

Quadra 11

10,0 – 3,6 KW

Natural convection
Hermetic
Cast iron brazier
Cast iron combustion chamber
Premium remote control
Ecodesign 2022
Energy class A+
Made Italy

Total heat output: max 11,1 kW – min 3,8 kW
Nominal heat output: max 10,0 kW – min 3,6 kW
Efficiency: Pmax 90,0% – Pmin 94,5%
Pellet consumption: max 2,4 kg/h – min 0,8 kg/h
Reservoir capacity: 19 kg
Heatable room volume: 170 – 260 mc
Minimum distances from flammable walls: side: 25 cm - back: 20 cm - front side: 100 cm
Voltage / Frequency: 230 V / 50 Hz
Rated input power: 350 W

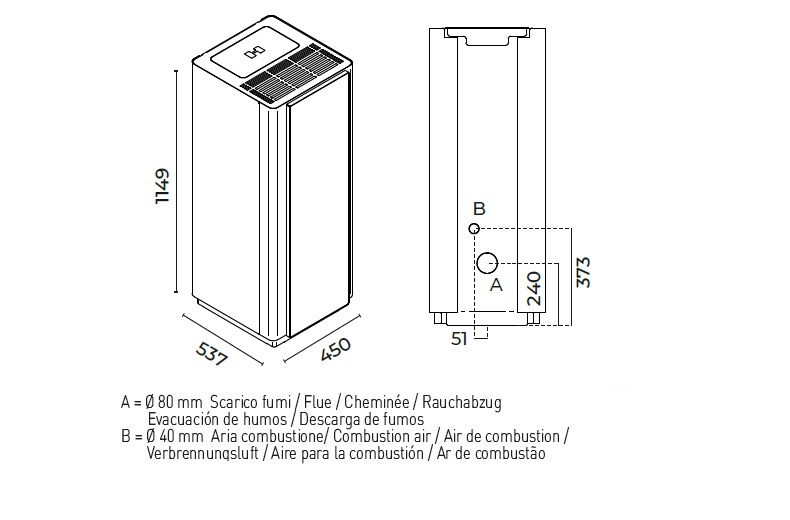

Dimension: L 45,0 x P 53,7 x H 114,9 cm
Weight: 98 kg
Fume outlet: Rear
