Diana

Majolica coating
Hand finished
24-carat gold decoration
Forced ventilation
25 kg Pellet tank
5 operating power levels
Menu display in 6 languages
Cast iron combustion chamber
Majolica block assembled on selfsupporting structure
Removable ash tray for ash removal
Removable handle
Safety thermostat
Suitable for external thermostat
Safety Manostat
Timer Thermostat

Total heat output: max 13,8 kW – min 4,0 kW
Nominal heat output: max 12,5 kW – min 3,5 kW
Energy efficiency class: A+
Efficiency: Pmax 90,0% – Pmin 93,5%
CO emission at 13% O2: Pmax 0,018% – Pmin 0,022%
Pellet consumption: max 3,0 kg/h – min 0,9 kg/h
Reservoir capacity: 25 kg
Heatable room volume: 200 – 300 mc
Minimum distances from flammable walls: side: 30 cm - back: 20 cm - front side: 100 cm
Voltage / Frequency: 230 V / 50 Hz
Rated input power: 320 W
Dimension: L 73,1 x P 58,6 x H 136,8 cm
Peso: 226 kg
Cast iron combustion chamber
Stainless steel brazier
Complies with: EN14785 - BImSchV II - LRV/VKF
Sliding drawer for ash removal
Fume outlet: Rear
Remote control: Optional
WIFI module for remote control: Optional
Platforms for protection: Optional







Diana


CERTIFICATION

Certified and tested product.

ECODESIGN 2022

This product is in conformity with ECO DESIGN 2022 that sets the criteria defining sustainable engineering, computations and measurements aimed at reducing emissions in the atmosphere.

ENVIRONMENTAL CLASSIFICATION

This product complies with the most restrictive rules on environmnental standards and it has been awarded with 5 stars.

GOLD

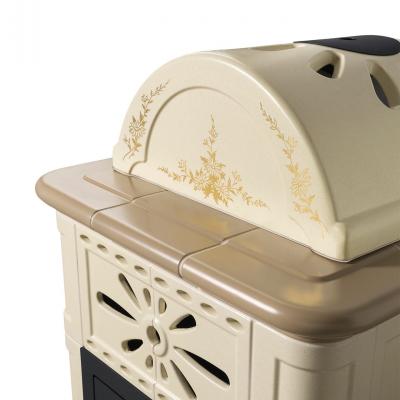

This symbol indicates that the stove has been decorated by hand in 24-carat gold. Craftsmen who specialise in decoration apply a thin gold film to the majolica using a technique that guarantees its durability and resistance to temperature changes. An original touch that enhances the majolica pellet stove and turns it into something unique

SHU

The SHU symbol indicates that the stove is equipped with a removable handle. This is a security feature to avoid accidental and/or involuntary opening of the fire door.

WI-FI MODULE (OPTIONAL)

Module for remote control, it can be installed during post-sales.
