Nina versione incasso

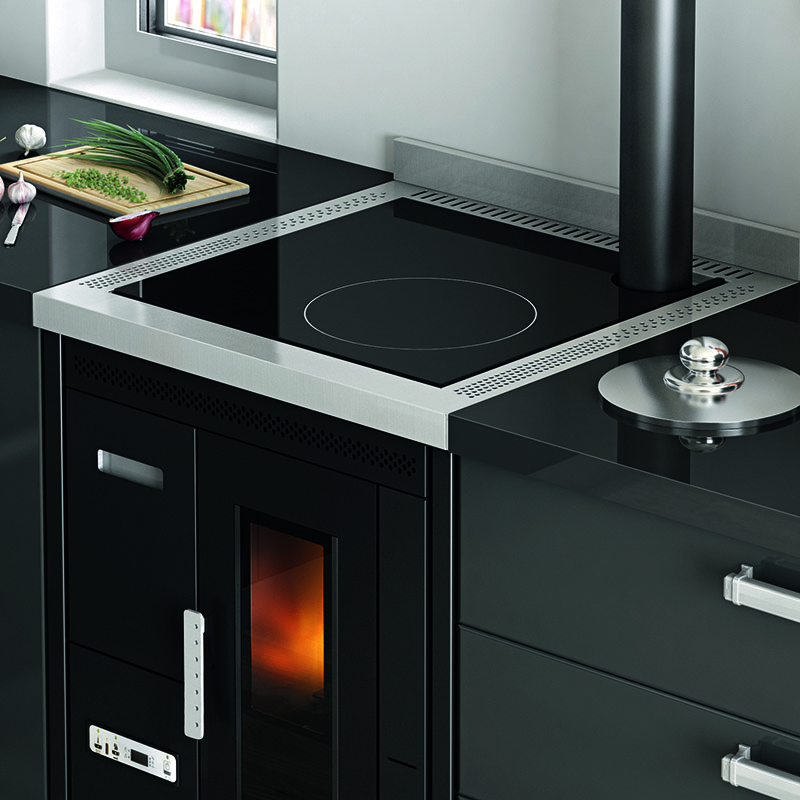

Steel or ceramic glass surface, certified for cooking
Front glass door with black etching
Forced ventilation, can be cut off in summer

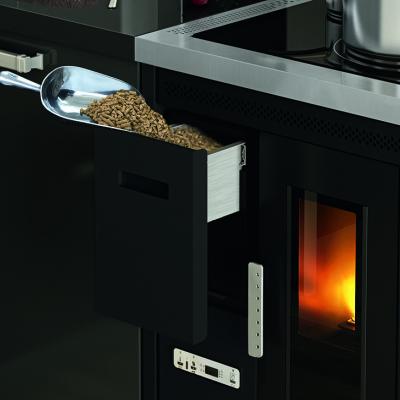

Removable front drawer for pellet loading
10 (5+5) operating power levels
Menu display in 6 languages
Removable ash tray for ash removal
Upper - rear smoke extraction
Safety thermostat
Suitable for external thermostat
Safety Manostat
Timer Thermostat

Total heat output: max 7,5 kW – min 2,8 kW
Nominal heat output: max 6,7 kW – min 2,5 kW
Energy efficiency class: A+
Efficiency: Pmax 88,5% – Pmin 89,1%
CO emission at 13% O2: Pmax 0,019% - Pmin 0,011%
Pellet consumption: max 1,6 kg/h - min 0,6 kg/h
Reservoir capacity: 16 kg
Heatable room volume: 70 – 160 mc
Minimum distances from flammable walls: side: 1 cm - back: 1 cm - front side: 100 cm
Voltage / Frequency: 230 V / 50 Hz
Rated input power: 320 W
Dimension: L 59,8 x P 61,9 x H 91,5 cm
Peso: 133 kg
Steel combustion chamber
Stainless steel brazier
Complies with: EN14785 - BImSchV II - 15a B-VG - LRV/VKF
Sliding drawer for ash removal
Fume outlet: Top - Rear
Remote control: Optional
WIFI module for remote control: Optional
Platforms for protection: Optional

Cassetto caricamento pellet frontale

Piano cottura in acciaio

Cassetto estraibile per recupero ceneri

Piano cottura in vetroceramica

Nina versione incasso

CERTIFICATION

Certified and tested product.

ECODESIGN 2022

This product is in conformity with ECO DESIGN 2022 that sets the criteria defining sustainable engineering, computations and measurements aimed at reducing emissions in the atmosphere.

ENVIRONMENTAL CLASSIFICATION

This product complies with the most restrictive rules on environmnental standards and it has been awarded with 4 stars.

WI-FI MODULE (OPTIONAL)

Module for remote control, it can be installed during post-sales.
