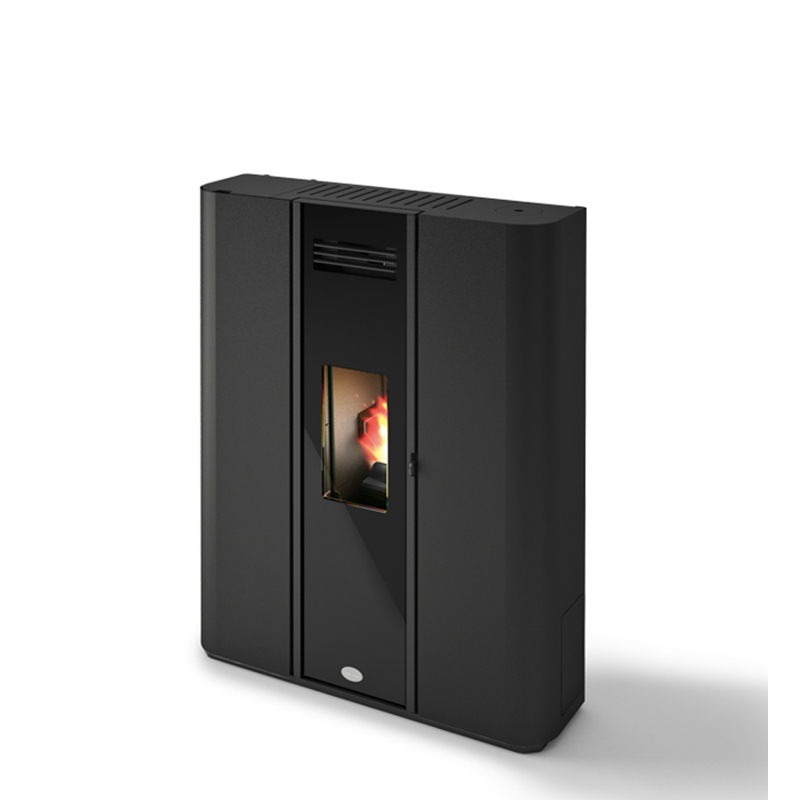

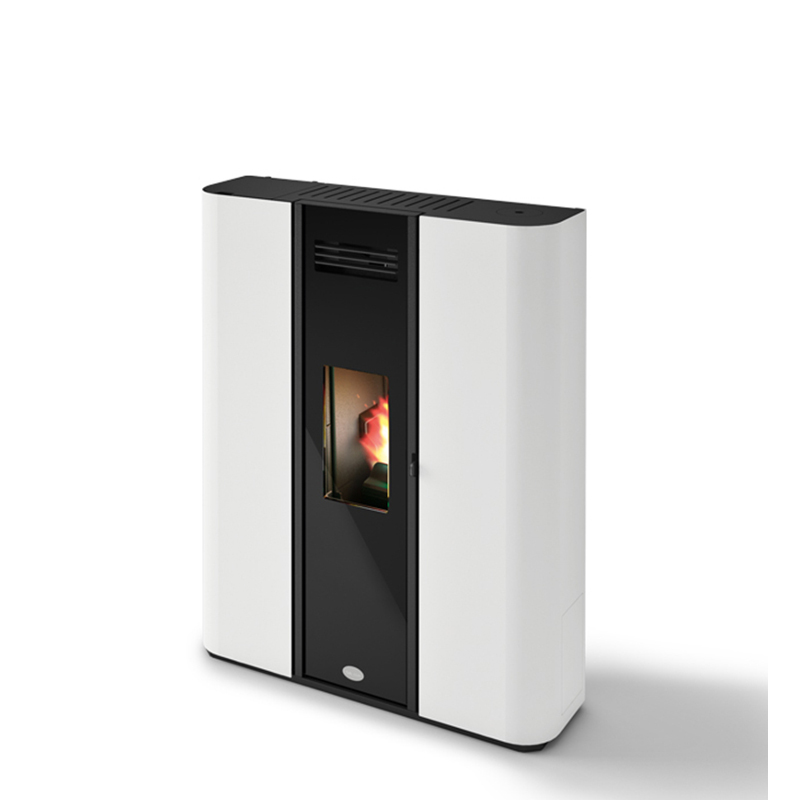

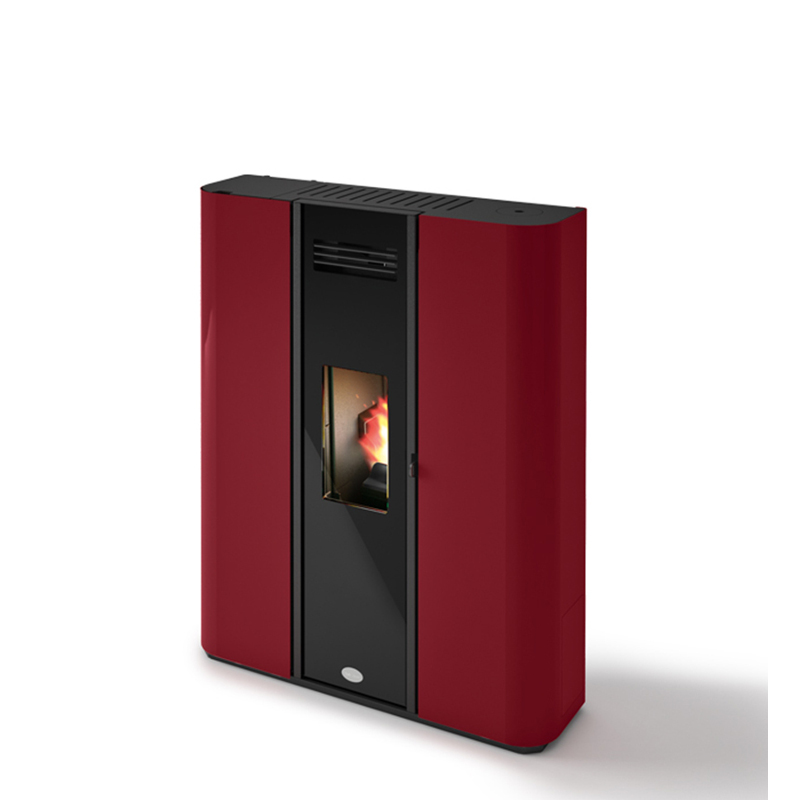

Diva

SEALED DUCTABLE

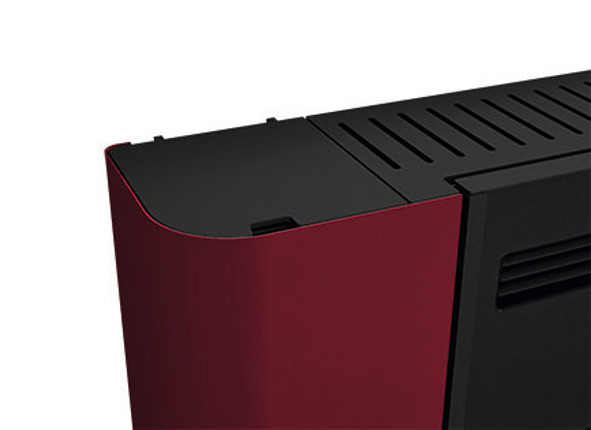

Modelled sides with wide radius
8 mm thick top
Front glass door with black etching
Space-saving
Forced ventilation
10 operating power levels
Cast iron combustion chamber
Cast iron brazier
Dynamic Flow Control System (DFCS)
Sealed stove
Continuous fan motor operation for optimum silent operation
Removable ash tray for ash removal
Removable handle
BASIC channelling available

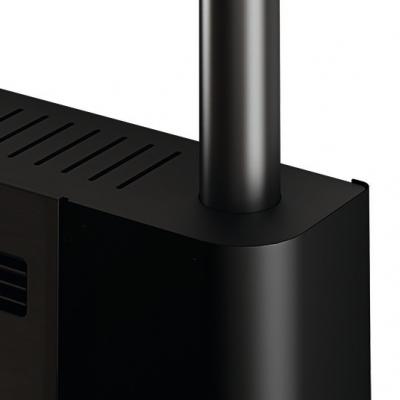

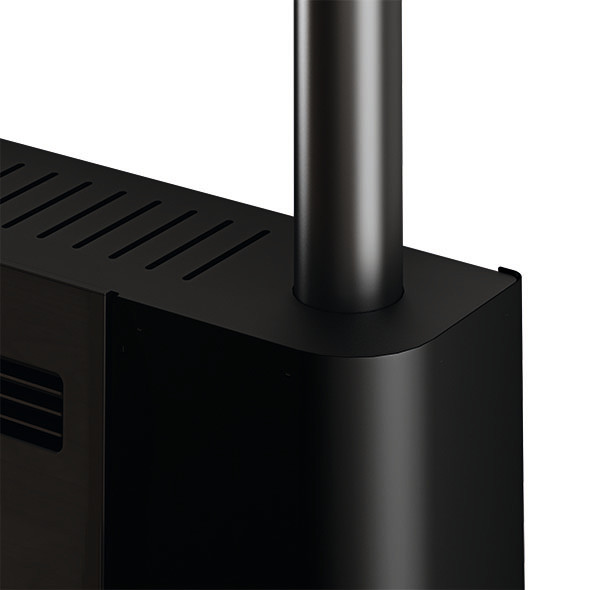

Upper - rear smoke extraction
Can be wall hung
Rechargeable radio control supplied
Safety thermostat
Suitable for external thermostat
Safety Manostat
Timer Thermostat

Total heat output: max 9,4 kW – min 2,6 kW
Nominal heat output: max 8,5 kW – min 2,5 kW
Energy efficiency class: A+
Efficiency: Pmax 90,5% – Pmin 95,5%
CO emission at 13% O2: Pmax 0,004% - Pmin 0,045%
Pellet consumption: max 1,9 kg/h - min 0,5 kg/h

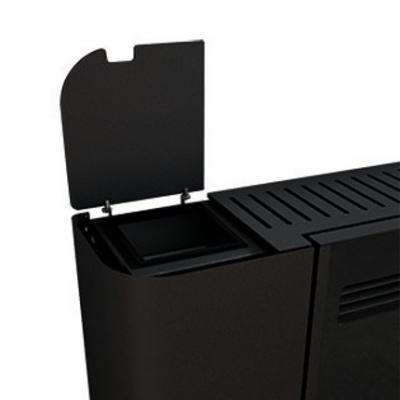

Reservoir capacity: 13,5 kg
Heatable room volume: 140 – 200 mc
Minimum distances from flammable walls: side: 15 cm - back: 5 cm - front side: 100 cm
Voltage / Frequency: 230 V / 50 Hz
Rated input power: 340 W
Dimension: L 84,5 x P 25,6 x H 103,4 cm
Weight: 96 kg
Cast iron combustion chamber
Cast iron brazier
Complies with: EN14785 - BImSchV II - 15a B-VG- LRV/VKF
Sealed stove
Sliding drawer for ash removal
Fume outlet: Top - Rear
Remote control: Included
WIFI module for remote control: Optional
BASIC channelling available
Wall-hanging Kit: Optional
Platforms for protection: Optional

BASIC

For heating a single room adjacent to the stove, of limited size, approx. 60-90 m3. Optional in versions Erika, Rebecca, Petra, Andrea New, Tommy New, Cecilia, Lucia, Agnese, Diva.









Diva


CERTIFICATION

Certified and tested product.

ECODESIGN 2020

This product is in conformity with ECO DESIGN 2020 that sets the criteria defining sustainable engineering, computations and measurements aimed at reducing emissions in the atmosphere.

ENVIRONMENTAL CLASSIFICATION

This product complies with the most restrictive rules on environmnental standards and it has been awarded with 4 stars.

SHS

The SHS symbol is used on stoves with a hermetic combustion system. With this system the stove draws no air for combustion from the space in which it is installed. Not only does this greatly improve performance and optimise heat generation, it also makes the stove very safe and suitable for installation in locations such as bedrooms, studio flats and bathrooms.

SHU

The SHU symbol indicates that the stove is equipped with a removable handle. This is a security feature to avoid accidental and/or involuntary opening of the fire door.

WI-FI MODULE (OPTIONAL)

Module for remote control, it can be installed during post-sales.
